PRODUCTS

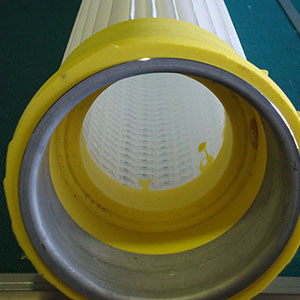

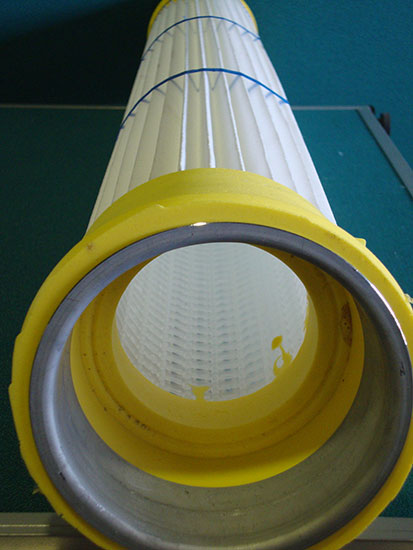

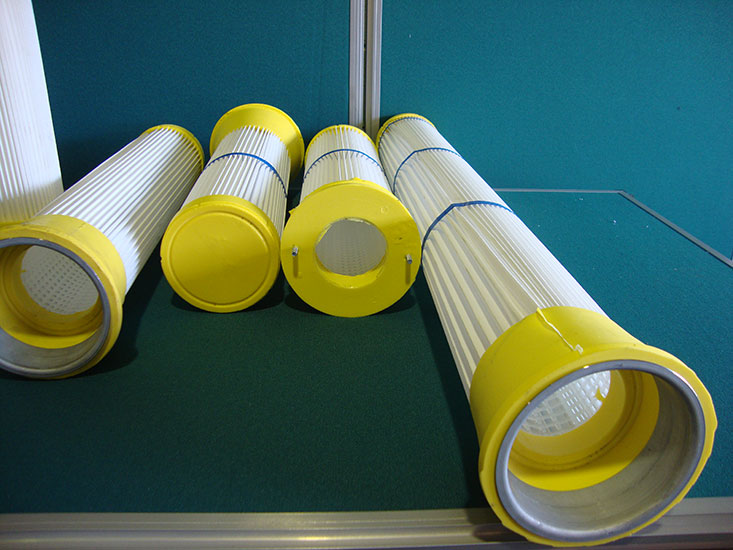

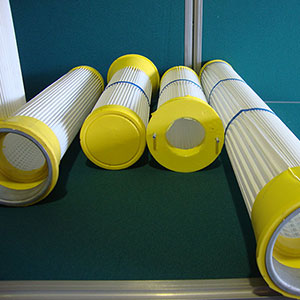

Used mainly in dust collectors and for wood dust
Main industries are mining, mineral processing, plastics, sandblasting, cement processing, woodworking, ag feedlots, vacuum trucks etc
- Designed and manufactured in Australia
- High performance polyurethane seals/end caps
- Long life, high efficiency and lower pressure differentials than traditional bags.
- Media is spun bonded polyester (SBPE), with or without anti-static (anti-static coating is used if dust is explosive eg coal, dirt)
- Opening size 135mm – 168mm (others on request)
- Length 400mm – 2m
Inlet filters for silencers, blowers and vacuums
Applied Filters make a wide range of sizes and types of blower filters and air intake filters, including filters for silencers. These are used in a wide range of industrial settings including flour mills, plastics manufacturers & compounders, furnaces, pneumatic conveying, food manufacturing and timber mills.
We use the highest quality materials to ensure best performance.
All our air filter elements are:
- Locally made
- Made with high quality components including high grade, long wearing polyurethane moulded ends
- Available at short notice with a large range held in stock and others available on short lead times
- Made with metal inner guards; outer guards are available if required
A range of filtration media is available, depending on performance requirements:
- Depth filtration media:

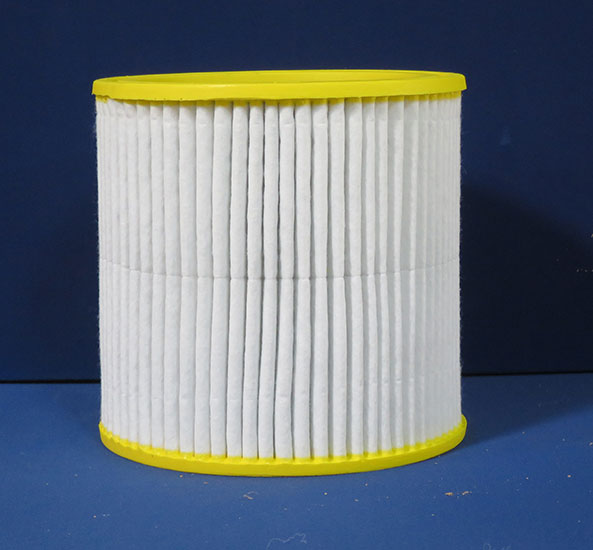

- Felt

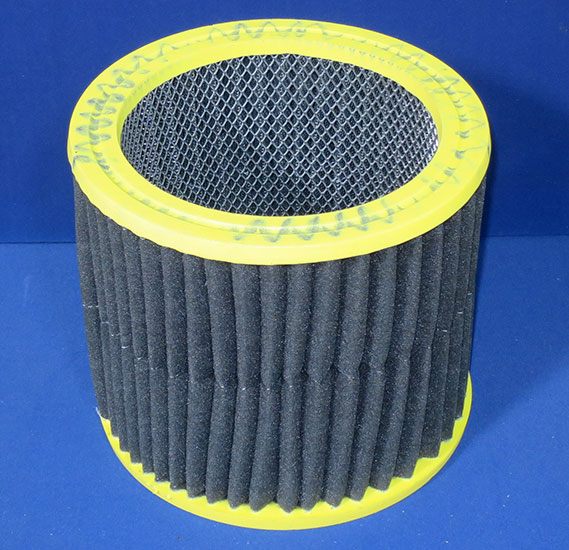

- Foam
- Felt
- Surface filtration media:

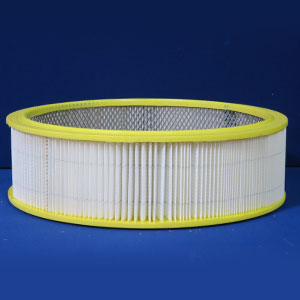

- Paper

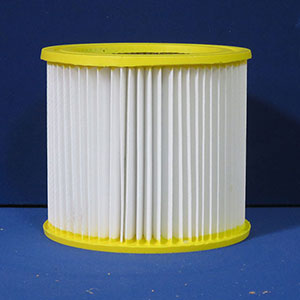

- Spun bonded polyester (SBPE)
- Paper
- Felt and foam are wire backed
Filters are made in a wide variety of standard sizes (MW range – see table opposite); custom sizes are also available.
Foam pre-filters are available
Filter Media Selection
Filter media offer different efficiency performance as follows:
Media type |
Initial restriction (pressure drop) |
Efficiency |
Comments |
|
Inches water gauge |
Pa |
|||

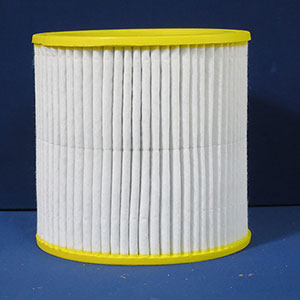

Pleated polyester felt |
0.5” WG |
125 |
93-95% @ 5µm |
Excellent for wide range of particle sizes – most commonly used |

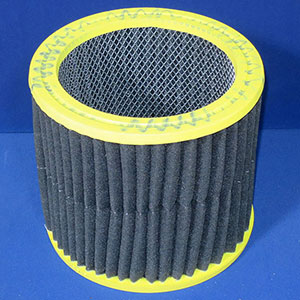

Pleated foam |
0.3” WG |
75 |
86-90% @ 5µm |
Suitable for moist environments with large particles |

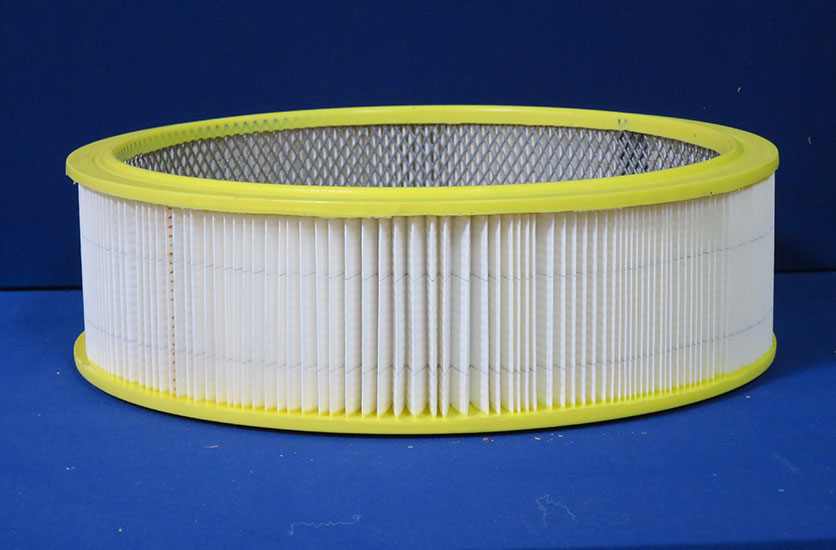

Pleated paper |
0.5” WG |
125 |
99.96% @ 5µm |
Best for fine dry particles |
Pleated paper with foam pre-filter |
0.7” WG |
175 |
99.99% @ 5µm |
Extends life of paper (by filtering out larger abrasive particles) |

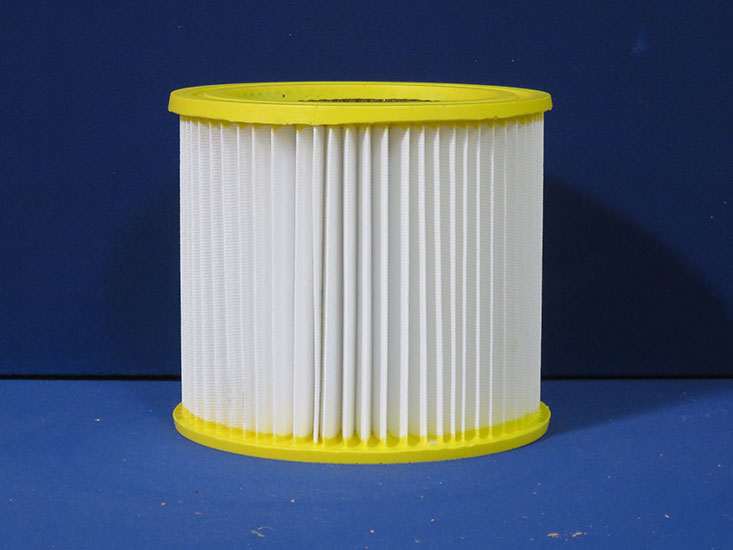

Pleated SBPE |
0.7” WG |
175 |
98% @ 5µm |
Best for protecting high tech machinery from fine particulates |

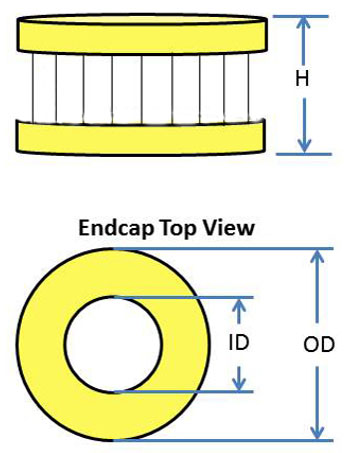

Dimensions and Flow Rates for MW Filter Range
Model |
Size |
Capacity |
|||
ID (mm) |
OD (mm) |
H (mm) |
CFM |
m³/hr |
|
MW0 |
41 |
73 |
40 |
- |
- |
MW1 |
63 |
106 |
89 |
40 |
68 |
MW2 |
86 |
128 |
89 |
125 |
213 |
MW3 |
104 |
162 |
141 |
300 |
510 |
MW4 |
129 |
187 |
167 |
450 |
765 |
MW5 |
165 |
222 |
197 |
650 |
1105 |
MW6 |
190 |
248 |
235 |
900 |
1530 |
MW7 |
244 |
343 |
294 |
1100 |
1869 |
MW8 |
269 |
394 |
351 |
1800 |
3060 |
MW10 |
368 |
495 |
492 |
3000 |
5100 |
MW10/600 |
368 |
495 |
600 |
3600 |
6120 |
MW12 |
489 |
597 |
467 |
3600 |
6120 |
MW14 |
629 |
743 |
467 |
5500 |
9350 |
MW16 |
629 |
743 |
543 |
7000 |
11900 |
End mouldings are made from high grade polyurethane (MW12-16 are metal).
In addition, non-standard lengths in any of the media can be made.
Contact us to discuss the correct media selection for your application.

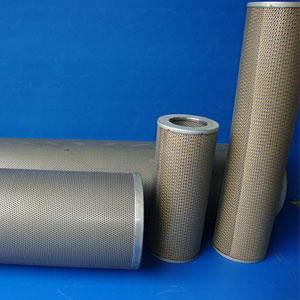

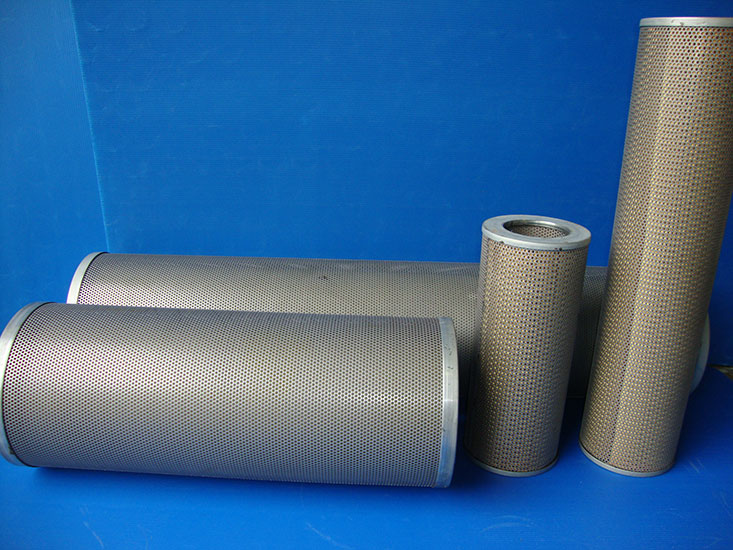

OIL/AIR SEPARATORS (Coalescers)
Removal of entrapped oil mist from compressed air prior to being released into the work environment . Oil particles separated from the oil mist are recycled back into the system.
Applications in the industrial refrigeration and air-conditioning industries.
- Suitable for rotary screw compressors
- 2 - 5 ppm of oil in downstream gas.
- 0.07 - 0.21 bar pressure differentials for clean separators sized for normal gas flow rates
- Materials of construction compatible with all types of coolant & lubricant commonly used in air/gas and refrigerant compressors.
- Temperatures range up to 110 degrees C.
- Media can be wrapped or pleated
- Mild steel endcaps and outerguards
- Filters are 7” or 9” in outside diameter
- Filters are 12” – 42” in length

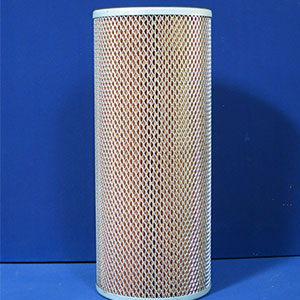

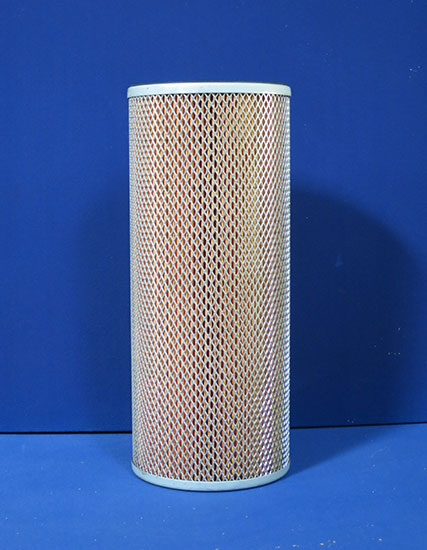

Oil Filters
Used to filter particles from oil
Used in the refrigeration industry
- Media is pleated, using cellulose paper impregnated with phenolic resins
- High grade gaskets
- Mild steel or stainless steel endcaps and outerguards
Coming soon…
